首頁歐美晶振 Cardinal晶振Cardinal晶振,CX5Z-A5B2C4-40-27.0D18,6G無線通信晶振

Cardinal晶振,CX5Z-A5B2C4-40-27.0D18,6G無線通信晶振

編號：27741358
頻率：27MHz
尺寸：7.0×5.0mm

Cardinal晶振,CX5Z石英晶體諧振器,進口無源晶振,CX5Z-A5B2C4-40-27.0D18晶振,7050mm晶振,四腳貼片晶振,頻率27MHz,負載18pF,頻率穩定性50ppm,工作溫度-20~70°C,高品質晶振,低老化晶振,6G無線通信晶振,儲存卡晶振,可穿...

分享到

Cardinal晶振,CX5Z-A5B2C4-40-27.0D18,6G無線通信晶振,Cardinal晶振,CX5Z石英晶體諧振器,進口無源晶振,CX5Z-A5B2C4-40-27.0D18晶振,7050mm晶振,四腳貼片晶振,頻率27MHz,負載18pF,頻率穩定性50ppm,工作溫度-20~70°C,高品質晶振,低老化晶振,6G無線通信晶振,儲存卡晶振,可穿戴設備晶振,平板電腦晶振,網絡終端晶振.
Cardinal晶振,CX5Z-A5B2C4-40-27.0D18,6G無線通信晶振特點：
•可用的最低最大驅動級別
•最寬頻率范圍
•非常緊密的穩定性

Cardinal晶振,CX5Z-A5B2C4-40-27.0D18,6G無線通信晶振參數表

規格參數	數值
頻率	27MHz
頻率容差	±10ppm
頻率穩定性	±50ppm
工作溫度	-20 to +70°C
負載	18pF
并聯電容	5 pF Max
等效串聯電阻	40Ω Max
激勵功率	50μw Max
儲存溫度	-55~125°C
老化	±3ppm/year

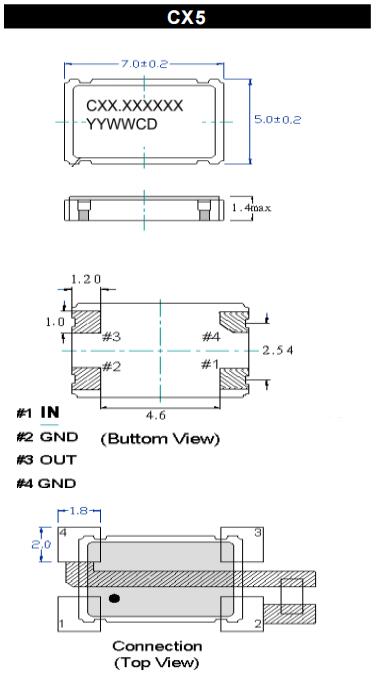

Cardinal晶振,CX5Z-A5B2C4-40-27.0D18,6G無線通信晶振尺寸圖

原廠編碼	生產廠家	型號	頻率	ESR 電阻	工作溫度
CX5Z-A5B2C5-70-7.37280D18	Cardinal晶振	CX5	7.3728MHz	70 Ohm	-20°C ~ 70°C
CX5Z-ARB2C5-70-7.3728D18	Cardinal晶振	CX5	7.3728MHz	70 Ohm	-40°C ~ 125°C
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CX5	27MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CX5	27MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CX5	27MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CX5	24.576MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CX5	24.576MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CX5	24.576MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CX5	8MHz	70 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CX5	8MHz	70 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CX5	8MHz	70 Ohm	-20°C ~ 70°C
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	40 Ohm	-10°C ~ 70°C
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	40 Ohm	-10°C ~ 70°C
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	40 Ohm	-10°C ~ 70°C
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	50 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	50 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	50 Ohm	-20°C ~ 70°C
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	50 Ohm	-10°C ~ 60°C
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	50 Ohm	-10°C ~ 60°C
CX5Z-A0B2C5-50-38.0D18	Cardinal晶振	CX5	38MHz	50 Ohm	-10°C ~ 60°C
CX5Z-A2B2C5-40-18.0D18	Cardinal晶振	CX5	18MHz	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-00.0D18	Cardinal晶振	CX5	20MHz	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-10.0D18	Cardinal晶振	CX5	10MHz	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-70-8.0D18	Cardinal晶振	CX5	8MHz	70 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-70-30.0D18	Cardinal晶振	CX5	30MHz	70 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-70-32.0D18	Cardinal晶振	CX5	32MHz	70 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-48D18	Cardinal晶振	CX5	48MHz	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-25D18	Cardinal晶振	CX5	25MHz	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-40D18	Cardinal晶振	CX5	40MHz	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal晶振	CX5	12MHz	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal晶振	CX5	12MHz	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal晶振	CX5	12MHz	40 Ohm	-40°C ~ 85°C
CX5Z-A5B2C5-40-12.0D18	Cardinal晶振	CX5	12MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal晶振	CX5	10MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal晶振	CX5	10MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal晶振	CX5	10MHz	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-25D18	Cardinal晶振	CX5	25MHz	40 Ohm	-20°C ~ 70°C
