首頁歐美晶振 ECS晶振ECS晶振,ECS-180-18-5PXEN,6G低成本晶振

ECS晶振,ECS-180-18-5PXEN,6G低成本晶振

編號：20101471
頻率：18MHz
尺寸：11.4×4.8mm

ECS晶振,CSM-7X無源晶振,ECS-180-18-5PXEN晶振,石英晶體諧振器,進口SMD晶振,頻率18MHz,負載18pF,工作溫度-40~85°C,頻率穩定性30ppm,無鉛環保晶振,高可靠性晶振,6G低成本晶振,智能手機晶振,平板電腦晶振,數字電表晶振...

分享到

ECS晶振,ECS-180-18-5PXEN,6G低成本晶振,ECS晶振,CSM-7X無源晶振,ECS-180-18-5PXEN晶振,石英晶體諧振器,進口SMD晶振,頻率18MHz,負載18pF,工作溫度-40~85°C,頻率穩定性30ppm,無鉛環保晶振,高可靠性晶振,6G低成本晶振,智能手機晶振,平板電腦晶振,數字電表晶振,兒童用游戲機晶振.

ECS晶振,ECS-180-18-5PXEN,6G低成本晶振特點：
•低成本SMD晶體的絕佳選擇
•低調
•行業標準封裝
•無鉛/符合RoHS標準

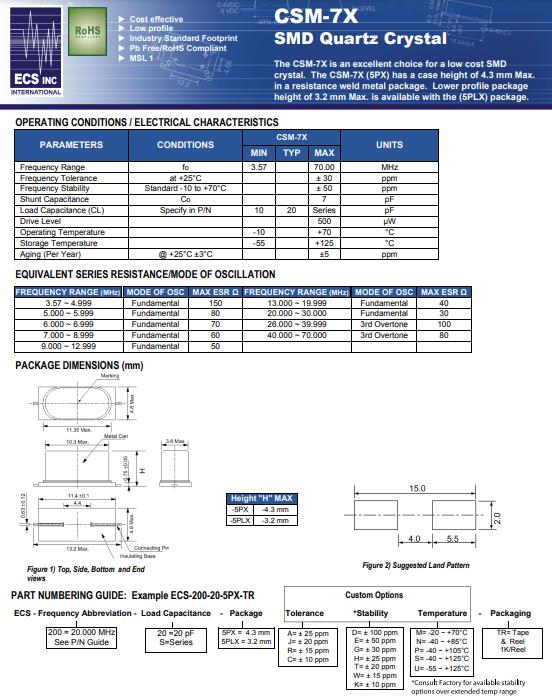

ECS晶振,ECS-180-18-5PXEN,6G低成本晶振參數表

參數	條件	CSM-7X
頻率		18MHz
頻率公差	at +25°C	± 30PPM
頻率穩定性	-10°C to +70°C	± 50PPM
負載電容	Specify in P/N	18pF
激勵功率	DL	500 μW Max
工作溫度	Topr	-40°C to +85°C
保存溫度	Topr	-55°C to +125°C
并聯電容	Co	7.0 pF
老化	@ +25°C ±3°C	±5ppm

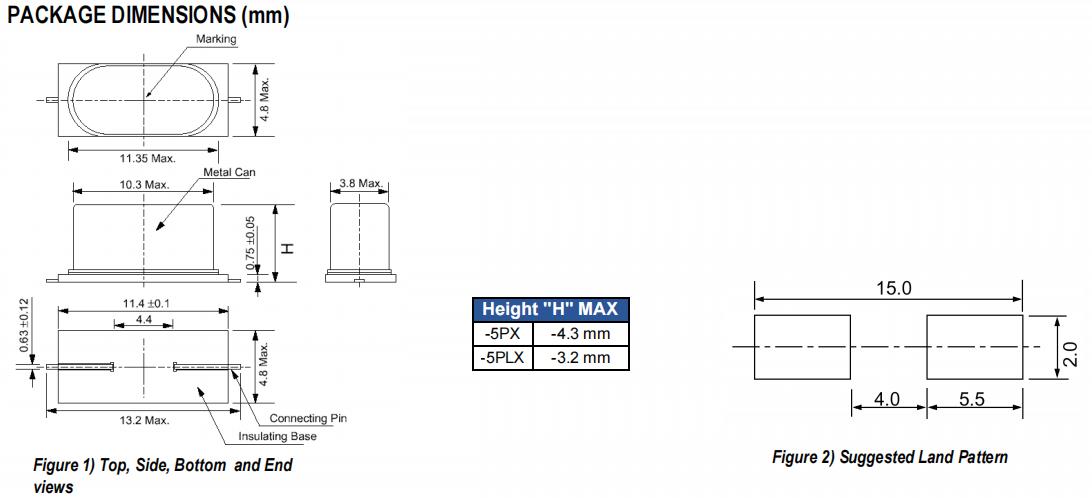

ECS晶振,ECS-180-18-5PXEN,6G低成本晶振尺寸圖

ECS原廠編碼	型號	頻率	頻率偏差	負載電容	工作溫度	包裝
ECS-100-18-5PX-TR	CSM-7X	10MHz	±30ppm	18pF	-10°C ~ 70°C	HC49/US
ECS-100-S-5PX-TR	CSM-7X	10MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-102.4-18-5PXEN	CSM-7X	10.24MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-102.45-16-5PX-TR	CSM-7X	10.245MHz	±30ppm	16pF	-10°C ~ 70°C	HC49/US
ECS-110.5-18-5PXEN-TR	CSM-7X	11.0592MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-110.5-20-5PX-TR	CSM-7X	11.0592MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-110.5-32-5PX-TR	CSM-7X	11.0592MHz	±30ppm	32pF	-10°C ~ 70°C	HC49/US
ECS-110.5-S-5PX-TR	CSM-7X	11.0592MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-110-18-5PXEN-TR	CSM-7X	11MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-115.2-18-5PXEN	CSM-7X	11.52MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-120.003-18-5PXEN	CSM-7X	12.000393MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-120-18-5PX-TR	CSM-7X	12MHz	±30ppm	18pF	-10°C ~ 70°C	HC49/US
ECS-120-32-5PX-TR	CSM-7X	12MHz	±30ppm	32pF	-10°C ~ 70°C	HC49/US
ECS-120-S-5PX-TR	CSM-7X	12MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-122.8-18-5PXEN-TR	CSM-7X	12.288MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-122.8-20-5PX-TR	CSM-7X	12.288MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-122.8-S-5PX-TR	CSM-7X	12.288MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-135.6-12-5PX-TR	CSM-7X	13.56MHz	±30ppm	12pF	-10°C ~ 70°C	HC49/US
ECS-135-18-5PXEN-TR	CSM-7X	13.5168MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-143-18-5PXEN-TR	CSM-7X	14.31818MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-143-20-5PX-TR	CSM-7X	14.31818MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-143-S-5PX-TR	CSM-7X	14.31818MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-147.4-18-5PXEN-TR	CSM-7X	14.7456MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-147.4-20-5PX-TR	CSM-7X	14.7456MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-147.4-S-5PX-TR	CSM-7X	14.7456MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-150-18-5PXEN	CSM-7X	15MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-150-S-5PX-TR	CSM-7X	15MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-160.003-18-5PXEN-TR	CSM-7X	16.000312MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-160.003-18-5PX-TR	CSM-7X	16.000312MHz	±30ppm	18pF	-10°C ~ 70°C	HC49/US
ECS-160-18-5PXEN-TR	CSM-7X	16MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-160-20-5PX-TR	CSM-7X	16MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-160-S-5PX-TR	CSM-7X	16MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-162.57-18-5PXEN-TR	CSM-7X	16.257MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-163-18-5PXEN-TR	CSM-7X	16.384MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-177.3-18-5PXEN	CSM-7X	17.734475MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-180-18-5PXEN	CSM-7X	18MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-180-S-5PX-TR	CSM-7X	18MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-184-18-5PX-TR	CSM-7X	18.432MHz	±30ppm	18pF	-10°C ~ 70°C	HC49/US
ECS-184-S-5PX-TR	CSM-7X	18.432MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-196.6-18-5PXEN-TR	CSM-7X	19.6608MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-196.6-20-5PX-TR	CSM-7X	19.6608MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-200-16-5PX-TR	CSM-7X	20MHz	±30ppm	16pF	-10°C ~ 70°C	HC49/US
ECS-200-18-5PXEN-TR	CSM-7X	20MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-200-20-5PX-TR	CSM-7X	20MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-200-S-5PX-TR	CSM-7X	20MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-204.8-20-5PX	CSM-7X	20.48MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-221-18-5PXEN-TR	CSM-7X	22.1184MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-240-12-5PX-TR	CSM-7X	24MHz	±30ppm	12pF	-10°C ~ 70°C	HC49/US
ECS-240-16-5PX-TR	CSM-7X	24MHz	±30ppm	16pF	-10°C ~ 70°C	HC49/US
ECS-240-18-5PXEN-TR	CSM-7X	24MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-240-20-5PX-TR	CSM-7X	24MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-245.7-18-5PXEN-TR	CSM-7X	24.576MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-245.7-20-5PX-TR	CSM-7X	24.576MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-250-18-5PX-F-TR	CSM-7X	25MHz	±30ppm	18pF	-10°C ~ 70°C	HC49/US
ECS-251.75-18-5PX-EN-TR	CSM-7X	25.175MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-270-18-5PX-F-TR	CSM-7X	27MHz	±30ppm	18pF	-10°C ~ 70°C	HC49/US
ECS-286.3-18-5PX-F-EN-TR	CSM-7X	28.63636MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-320-18-5PXEN	CSM-7X	32MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-35-17-5PX-TR	CSM-7X	3.579545MHz	±30ppm	17pF	-10°C ~ 70°C	HC49/US
ECS-35-18-5PXEN-TR	CSM-7X	3.579545MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-35-S-5PX-TR	CSM-7X	3.579545MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-36-18-5PXEN-TR	CSM-7X	3.6864MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-36-20-5PX-TR	CSM-7X	3.6864MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-36-S-5PX-TR	CSM-7X	3.6864MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-40.3-18-5PXEN	CSM-7X	4.032MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-40.3-20-5PX-TR	CSM-7X	4.032MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-40.3-S-5PX-TR	CSM-7X	4.032MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-400-18-5PXEN	CSM-7X	40MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-40-18-5PXEN-TR	CSM-7X	4MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-40-20-5PX-TR	CSM-7X	4MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-40-S-5PX-TR	CSM-7X	4MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-41-18-5PXEN-TR	CSM-7X	4.096MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-41-20-5PX-TR	CSM-7X	4.096MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-42-12-5PX-TR	CSM-7X	4.194304MHz	±30ppm	12pF	-10°C ~ 70°C	HC49/US
ECS-42-16-5PX-TR	CSM-7X	4.194304MHz	±30ppm	16pF	-10°C ~ 70°C	HC49/US
ECS-42-18-5PXEN-TR	CSM-7X	4.194304MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-44-20-5PX-TR	CSM-7X	4.433618MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-480-18-5PXEN	CSM-7X	48MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-480-20-5PX-TR	CSM-7X	48MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-491.5-18-5PXEN	CSM-7X	49.152MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-49-18-5PXEN-TR	CSM-7X	4.9152MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-49-20-5PX-TR	CSM-7X	4.9152MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-49-S-5PX-TR	CSM-7X	4.9152MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-500-18-5PXEN	CSM-7X	50MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-50-18-5PXEN-TR	CSM-7X	5MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-50-20-5PX-TR	CSM-7X	5MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-50-S-5PX-TR	CSM-7X	5MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-51-18-5PXEN-TR	CSM-7X	5.0688MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-51-20-5PX-TR	CSM-7X	5.0688MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-52-32-5PX-TR	CSM-7X	5.185MHz	±30ppm	32pF	-10°C ~ 70°C	HC49/US
ECS-59.9-20-5PX-TR	CSM-7X	5.9904MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-60-18-5PXEN-TR	CSM-7X	6MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-60-20-5PX-TR	CSM-7X	6MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-60-32-5PX-TR	CSM-7X	6MHz	±30ppm	32pF	-10°C ~ 70°C	HC49/US
ECS-60-S-5PX-TR	CSM-7X	6MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-61-18-5PXEN-TR	CSM-7X	6.144MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-61-32-5PX-TR	CSM-7X	6.144MHz	±30ppm	32pF	-10°C ~ 70°C	HC49/US
ECS-65-18-5PXEN	CSM-7X	6.5MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-73-18-5PXEN-TR	CSM-7X	7.3728MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-73-20-5PX-TR	CSM-7X	7.3728MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-73-S-5PX-TR	CSM-7X	7.3728MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-76.8-18-5PXEN-TR	CSM-7X	7.68MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-80-18-5PX-TR	CSM-7X	8MHz	±30ppm	18pF	-10°C ~ 70°C	HC49/US
ECS-80-20-5PX	CSM-7X	8MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-80-32-5PX-TR	CSM-7X	8MHz	±30ppm	32pF	-10°C ~ 70°C	HC49/US
ECS-80-S-5PX-TR	CSM-7X	8MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-92.1-20-5PX-TR	CSM-7X	9.216MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-92.1-S-5PX-TR	CSM-7X	9.216MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-98.3-18-5PXEN-TR	CSM-7X	9.8304MHz	±30ppm	18pF	-40°C ~ 85°C	HC49/US
ECS-98.3-20-5PX-TR	CSM-7X	9.8304MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-98.3-S-5PX-TR	CSM-7X	9.8304MHz	±30ppm	Series	-10°C ~ 70°C	HC49/US
ECS-80-18-5PXDS-TR	CSM-7X	8MHz	±30ppm	18pF	-40°C ~ 125°C	HC49/US
