Piezoelectric effect of Quartz Crystal

The quartz crystal has a character when the pressure is applied to the direction of the crystal axis, the electric change generates on the quartz crystal plate, and on the contrary, when the electricity is applied to the quartz crystal plate, the distortion occurs inside the crystal plate. So, that’s why we called it’s the piezoelectric effect of quartz crystal.

Equivalent Circuit of Crystal

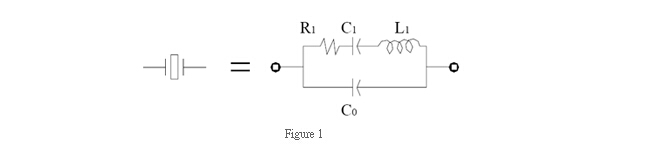

The equivalent circuit of a quartz crystal is shown to explain the basic elements governing the crystal characteristics and performance. It consists of a motional capacitance Cl, inductance Ll, series resistance Rl, and a shunted capacitance C0. The first three parameters are known as the "motional parameters" of the quartz crystal element. See Fig. 1

Series Resonance

When a crystal is operating at series resonance (Fs), it looks resistive in the circuit. Thus, impedance at Fs is near zero. In a well design series resonant circuit, correlation is not a problem and load capacitance does not have to be specified. See Fig. 2

Parallel Resonance

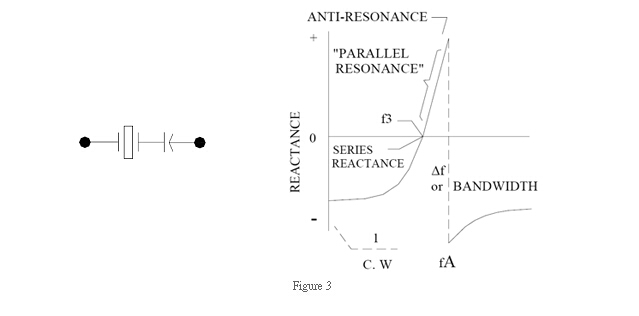

When a crystal is operating at parallel resonance (Fs<Fl<Fa), it looks inductive in the circuit. Thus, function of a load capacitance is very important in selecting the stable point of oscillation. In parallel circuit design, load capacitance CL shall be specified. See Fig. 3
