EPSON晶振發展成立至今成為國際赫赫有名的電子元件制造商,不僅為用戶提供優異的石英晶振,貼片晶振,TCXO晶振,時鐘晶體振蕩器等產品,同時致力于為用戶提供高可靠技術解決方案.為了更好的服務全球用戶,愛普生晶振的生產銷售據點遍布日本,馬來西亞,蘇州,泰國等國家.

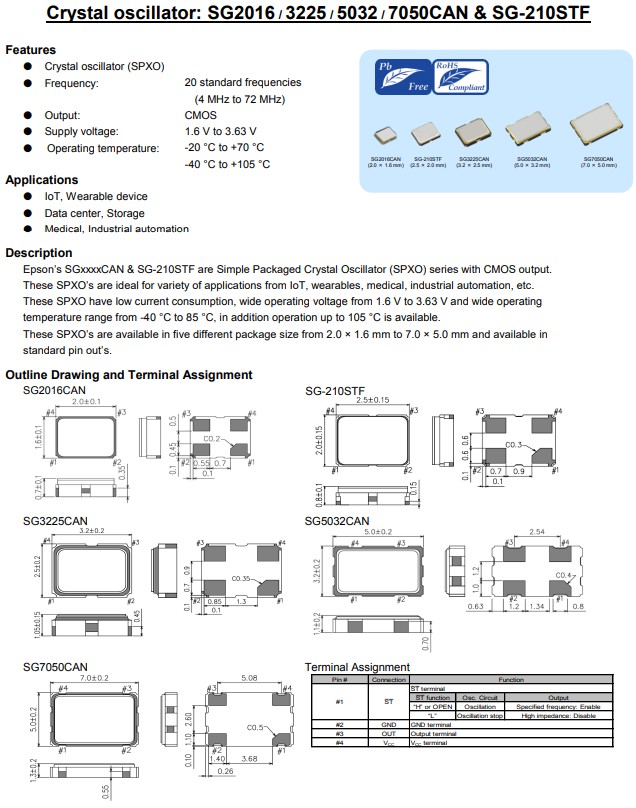

愛普生晶振SG3225CAN是一款CMOS輸出的石英晶體振蕩器 (SPXO)系列，小體積尺寸3.2x2.5mm有源晶振，四腳貼片晶振，具有低電流消耗、1.6V至3.63V的寬工作電壓和寬工作溫度范圍從-40℃到+85℃（+105℃）。這些SPXO提供從2.0x1.6mm到7.0x5.0mm的五種不同封裝尺寸，并提供標準引腳排列。具有超小型，輕薄型，低抖動，低功耗，高性能等特點。應用于5G移動通訊設備，工業控制，消費電子，智能安防設備，物聯網，車載電子，光電技術及各種變頻調速設備等通訊設備。
SG3225CAN貼片晶振X1G005961000115適用于智能安防設備,X1G005961002415,3225mm有源晶振

產品編碼	型號	有源晶振	尺寸	輸出波
X1G005961000115	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000215	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000315	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000415	SG3225CAN	8.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000515	SG3225CAN	10.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000615	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000715	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000815	SG3225CAN	24.576000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000915	SG3225CAN	40.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001015	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001115	SG3225CAN	4.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001215	SG3225CAN	4.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001315	SG3225CAN	8.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001415	SG3225CAN	10.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001515	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001615	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001715	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001815	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001915	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002015	SG3225CAN	14.745600MHz	3.20x2.50x1.05mm	CMOS
X1G005961002115	SG3225CAN	14.745600MHz	3.20x2.50x1.05mm	CMOS
X1G005961002215	SG3225CAN	16.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002315	SG3225CAN	16.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002415	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002515	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS

X1G005961002615	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002715	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002815	SG3225CAN	24.576000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002915	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003015	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003115	SG3225CAN	26.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003215	SG3225CAN	26.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003315	SG3225CAN	27.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003415	SG3225CAN	27.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003515	SG3225CAN	32.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003615	SG3225CAN	32.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003715	SG3225CAN	33.330000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003815	SG3225CAN	33.330000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003915	SG3225CAN	33.333300MHz	3.20x2.50x1.05mm	CMOS
X1G005961004015	SG3225CAN	33.333300MHz	3.20x2.50x1.05mm	CMOS
X1G005961004115	SG3225CAN	40.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961004215	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961004315	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961004415	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961004515	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961004615	SG3225CAN	72.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961004715	SG3225CAN	72.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961004815	SG3225CAN	72.000000MHz	3.20x2.50x1.05mm	CMOS

SG3225CAN貼片晶振X1G005961000115適用于智能安防設備,X1G005961002415,3225mm有源晶振

晶振特點和屬性：

1. 按形狀區分晶振有SMD（貼片晶振）和DIP（插件晶振）兩種。貼片晶振價格跟插件晶振相對比下，貼片晶振價格貴些。

2. 按頻率區分貼片晶振有MHZ和KHZ。MHZ常用封裝的有SMD2016、SMD2520、SMD3225、SMD5032、SMD6035、SMD7050。而KHZ最常用的頻率32.768KHZ；在手機和藍牙應用的晶振頻率有：12MHZ，16MHZ，24 MHZ，26 MHZ，32 MHZ貼片晶振配套使用。

3. 按性能區分貼片晶振分為：有源晶振（石英晶體振蕩器、溫補振蕩器、壓控振蕩器、壓控溫補振蕩器）和無源晶振（石英晶體諧振器、陶瓷晶振）。

4. 按材質區分貼片晶振分為金屬封裝和陶瓷封裝。
