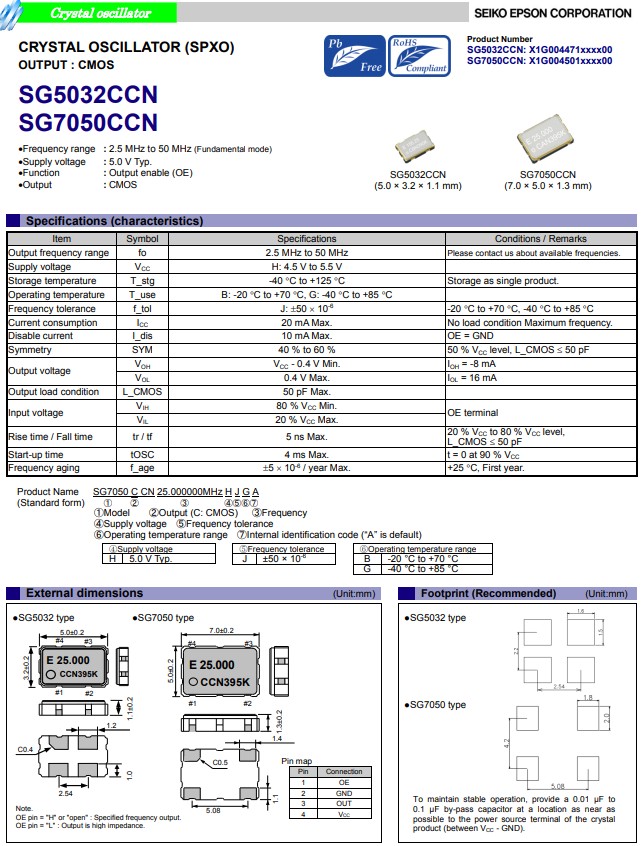

日本愛普生晶振產品系列SG7050CCN，小體積尺寸7.0x5.0mm四腳貼片晶振，石英晶體振蕩器，支持CMOS輸出電平，有源晶振，電源電壓4.5V至5.5V，頻率范圍2.5MHz至50MHz晶體振蕩器，具有小體積輕薄型，低電源電壓，低抖動，低功耗等特點，應用于移動通訊，無線WIFI，汽車電子，GPS導航，安防設備，醫療設備等在各種對頻率具有高要求的應用中具有出色的表現。
SG7050CCN用于無線WIFI模塊應用晶振X1G004501000600,X1G004501001700,有源晶振

產品編碼	型號	貼片晶振	尺寸	輸出波
X1G004501000100	SG7050CCN	4.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501000300	SG7050CCN	16.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501000400	SG7050CCN	48.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501000500	SG7050CCN	11.059200MHz	7.00x5.00x1.50mm	CMOS
X1G004501000600	SG7050CCN	20.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501000800	SG7050CCN	25.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501000900	SG7050CCN	33.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501001000	SG7050CCN	40.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501001100	SG7050CCN	44.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501001200	SG7050CCN	49.152000MHz	7.00x5.00x1.50mm	CMOS
X1G004501001400	SG7050CCN	4.915200MHz	7.00x5.00x1.50mm	CMOS
X1G004501001500	SG7050CCN	8.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501001600	SG7050CCN	5.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501001700	SG7050CCN	24.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501001800	SG7050CCN	3.579545MHz	7.00x5.00x1.50mm	CMOS
X1G004501001900	SG7050CCN	3.686400MHz	7.00x5.00x1.50mm	CMOS
X1G004501002000	SG7050CCN	6.000000MHz	7.00x5.00x1.50mm	CMOS

X1G004501002100	SG7050CCN	12.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501002600	SG7050CCN	14.745600MHz	7.00x5.00x1.50mm	CMOS
X1G004501002800	SG7050CCN	27.095000MHz	7.00x5.00x1.50mm	CMOS
X1G004501002900	SG7050CCN	29.500000MHz	7.00x5.00x1.50mm	CMOS
X1G004501003000	SG7050CCN	3.072000MHz	7.00x5.00x1.50mm	CMOS
X1G004501003100	SG7050CCN	10.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501003200	SG7050CCN	12.288000MHz	7.00x5.00x1.50mm	CMOS
X1G004501003300	SG7050CCN	18.432000MHz	7.00x5.00x1.50mm	CMOS
X1G004501003400	SG7050CCN	19.660800MHz	7.00x5.00x1.50mm	CMOS
X1G004501004000	SG7050CCN	7.372800MHz	7.00x5.00x1.50mm	CMOS
X1G004501004800	SG7050CCN	15.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501005000	SG7050CCN	6.600000MHz	7.00x5.00x1.50mm	CMOS
X1G004501005700	SG7050CCN	20.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501006000	SG7050CCN	8.192000MHz	7.00x5.00x1.50mm	CMOS
X1G004501006100	SG7050CCN	9.830400MHz	7.00x5.00x1.50mm	CMOS
X1G004501007900	SG7050CCN	7.000000MHz	7.00x5.00x1.50mm	CMOS
X1G004501008300	SG7050CCN	6.144000MHz	7.00x5.00x1.50mm	CMOS
X1G004501008400	SG7050CCN	14.318180MHz	7.00x5.00x1.50mm	CMOS
X1G004501008600	SG7050CCN	32.768000MHz	7.00x5.00x1.50mm	CMOS
X1G004501008900	SG7050CCN	33.330000MHz	7.00x5.00x1.50mm	CMOS
X1G004501009000	SG7050CCN	40.960000MHz	7.00x5.00x1.50mm	CMOS
X1G004501009100	SG7050CCN	13.560000MHz	7.00x5.00x1.50mm	CMOS

SG7050CCN用于無線WIFI模塊應用晶振X1G004501000600,X1G004501001700,有源晶振

石英晶體振蕩器優點：

1、石英鐘走時準、耗電省、經久耐用為其最大優點。不論是老式石英鐘或是新式多功能石英鐘都是以石英晶體振蕩器為核心電路，其頻率精度決定了電子鐘表的走時精度。

2、隨著電視技術的發展，近來彩電多采用500kHz或503kHz的晶體振蕩器作為行、場電路的振蕩源，經1/3的分頻得到15625Hz的行頻，其穩定性和可靠性大為提高。而且晶振價格便宜，更換容易。

3、在通信系統產品中，石英晶體振蕩器的價值得到了更廣泛的體現，同時也得到了更快的發展。許多高性能的石英晶振主要應用于通信網絡、無線數據傳輸、高速數字數據傳輸?shù)取?/span>
